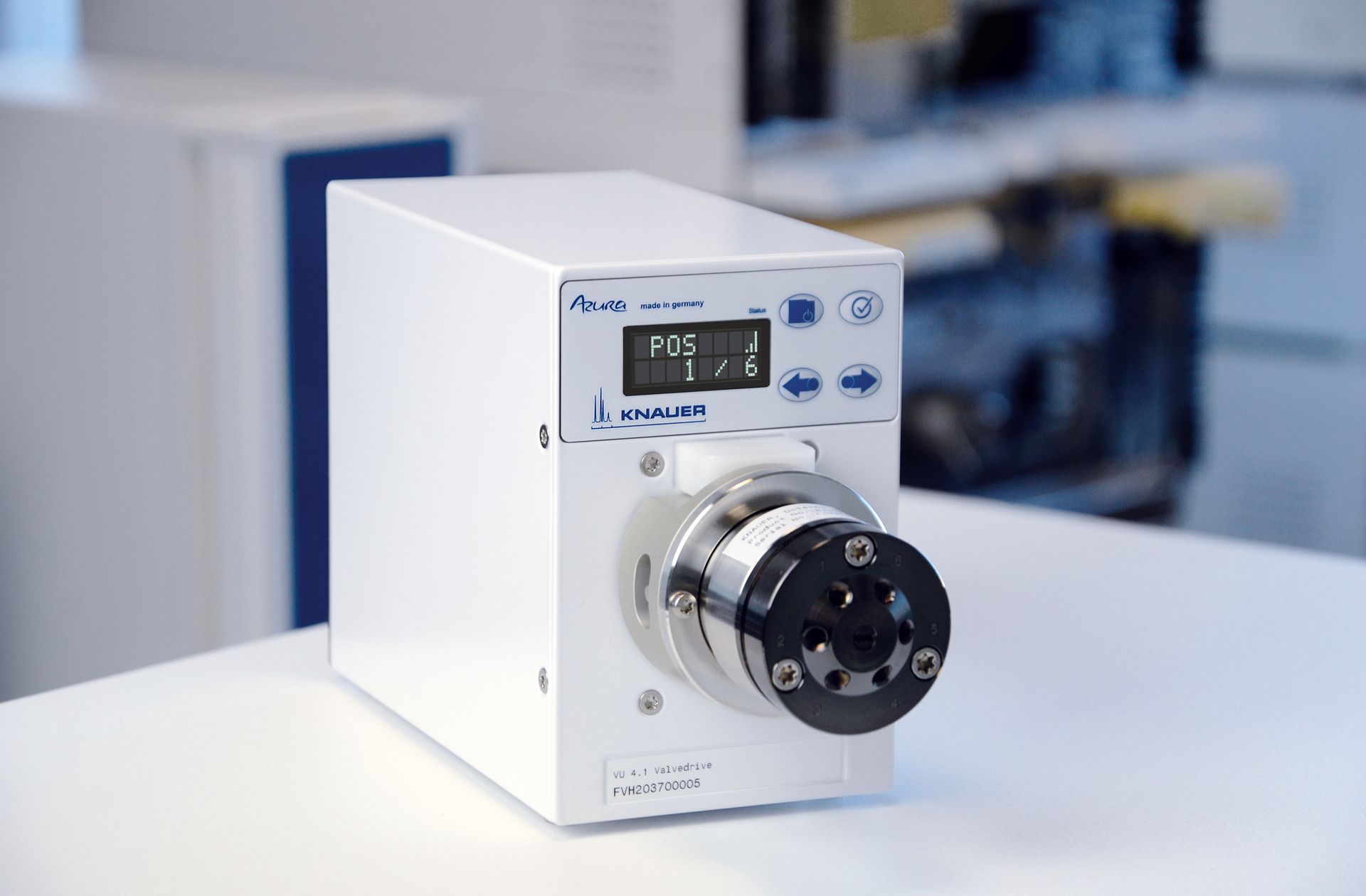

AZURA® VU 4.1 Valve Unifier
One Valve Drive for all applications
Function
Automatic valve switching for more than 40 valve types
Function
Automatic valve switching for more than 40 valve types
AZURA VU 4.1 Valve Unifier Concept
Save time during setup and exclude misconfiguration thanks to RFID valve recognition. Monitoring of GLP data like number of switching operations for easier planning of maintenance to minimize wear-related downtime. More automation for your (U)HPLC system.
Valve Identification
Automatically via RFID technology
Supported Valves
All AZURA V 4.1 valves, further valves possible with adapter
Usable everywhere
Small footprint and mounting options for AZURA systems
Versions
Stand-alone,
module for LC docking station
Intuitive Control
Via display or chromatography software like ClarityChrom® CDS, Chromeleon™ CDS, OpenLab® CDS, EZChrom Edition, Mobile Control, PurityChrom®
Save valuable lab time with a fully automatic valve drive
The AZURA VU 4.1 Valve Unifier is a smart valve drive/actuator with RFID technology (Radio-Frequency identification). It features automatic valve recognition and adjusts torque and switching speed specifically for each valve. Therefore, only one valve drive is needed from analytical to preparative scale.
Each valve is equipped with an RFID tag that stores all relevant data. This data is read wirelessly by the VU 4.1 valve drive and the switching parameters are automatically adjusted.
For example, a 1/8 inch valve with 2 mm bores requires a higher torque than a 1/16 inch valve with 0.3 mm bores due to the size.
The valve drive works as stand-alone device thanks to an integrated display but can also be controlled via our supported software. Due to various interfaces and the small footprint the valve drive AZURA VU 4.1 can easily be used to upgrade an existing system.
