Ultraviolett Detectors (UV/VIS)
Matching UV/VIS detector types according to your application needs
Detector Types
DAD, MWD, VWD
Application Flexibility
Analytical LC, preparative LC, FPLC, process applications
Wavelength Range
190–1000 nm
Flow Cell Options
Fiber optics, biocompatible, PressureProof, LightGuide
Learn more
Control
Stand-alone, CDS software
Linearity
Up to > 2.8 AU at 270 nm
Why to add suitable UV/VIS Detector to your LC?
We provide a choice of UV/VIS detectors, ranging from single variable wavelength to 8-channel diode array detector with LightGuide total reflection technology.

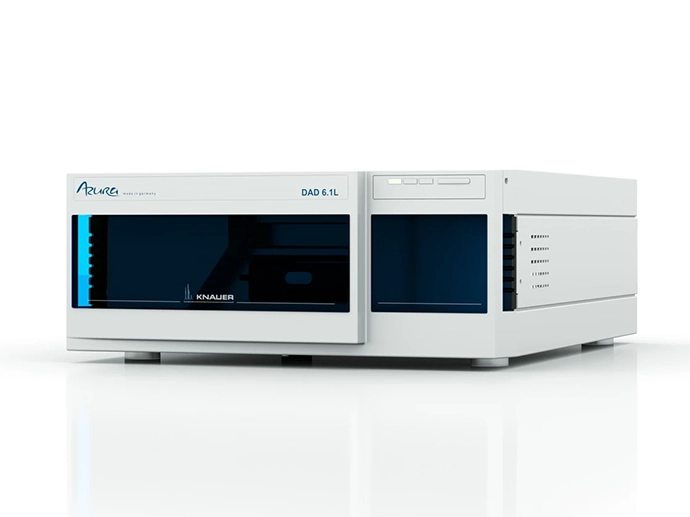

Both AZURA® diode array detectors DAD 6.1L and DAD 2.1L provide high spectral resolution enabling optimized identification and sample characterization.
Sensitive – LightGuide flow cells and Polka-Dot technology
Accessible – easy lamp and flow cell exchange from the front
Flexible – wide range of flow cells for high application versatility
Robust – intelligent temperature control for minimal drift
Please let us know how we can help.
UV/VIS Detector Types for all Chromophors
Designed for highest sensitivity through innovative light mixing technology
Advanced optical UV-Detection with spectral sensitivity for method development
Devices called DAD or PDA detectors can record 3D UV/VIS data over the whole analysis time. With a DAD detector the entire UV/VIS spectrum of analytes passing through the flow cell. DAD are the preferred detector choice in research laboratories for HPLC method development.
3D data means that full UV/VIS spectra are measured and these spectra are plotted over the whole time. This is useful for unknown analytes or target compounds with different UV characteristics. The resulting UV/VIS spectra plots enable peak identification and monitor co-elution. Additionally 2D chromatograms can be extracted from 3D-data at any wavelength.

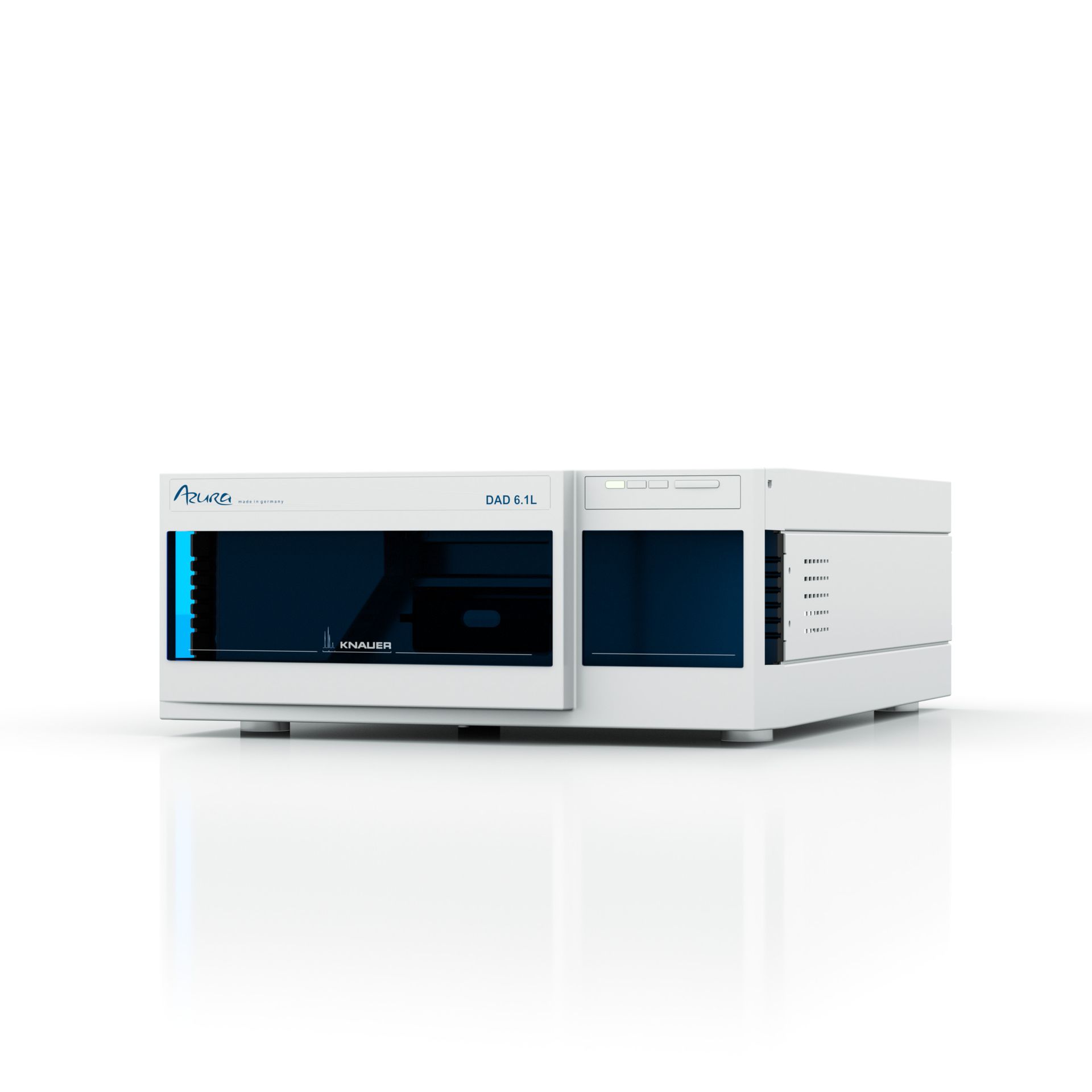

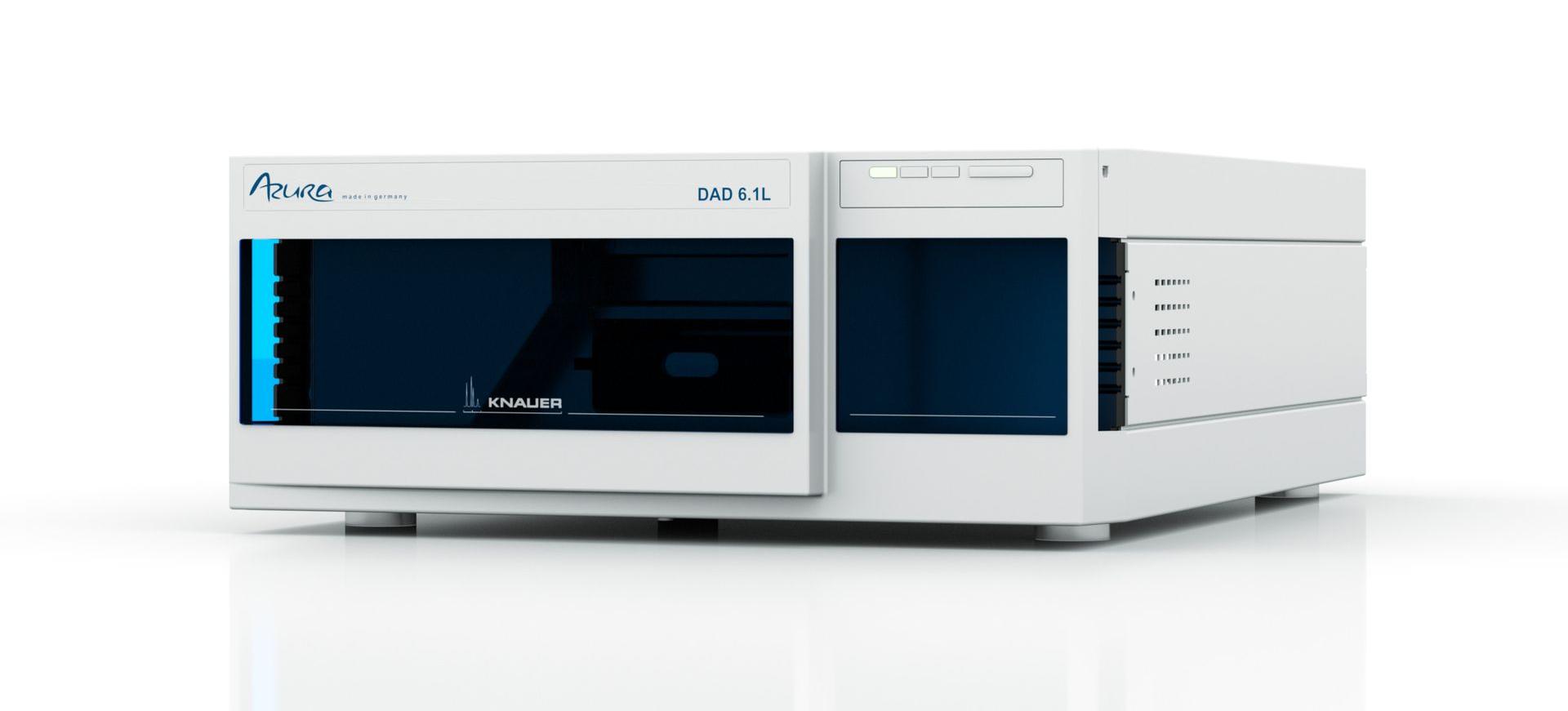

Both AZURA® diode array detectors DAD 6.1L and DAD 2.1L provide high spectral resolution enabling optimized identification and sample characterization with data rates up to 100 Hz.
Versatile Multi Wavelength UV-Detection with simultaneous acquisition compound-specific wavelengths

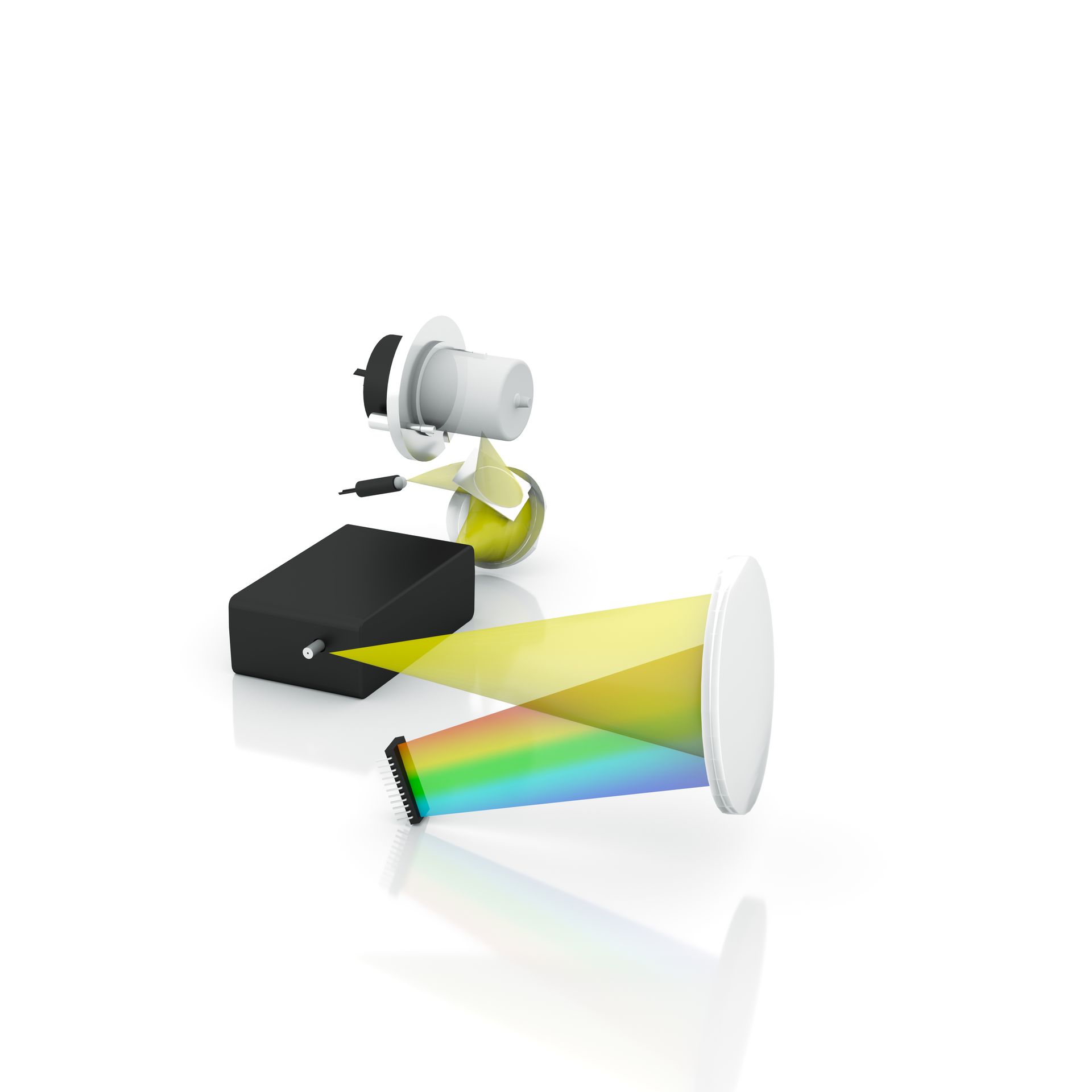

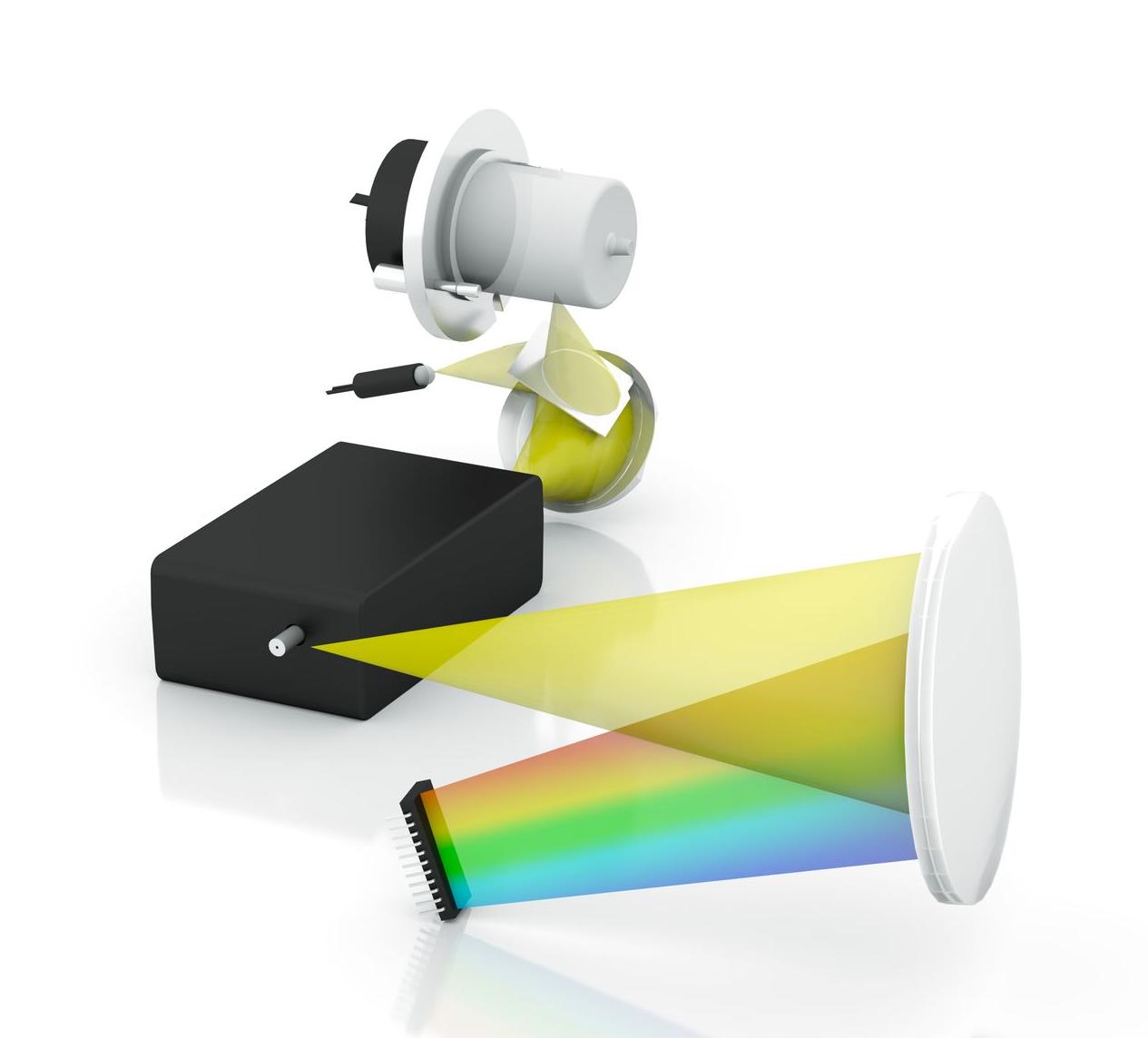

Devices called Multi-wavelength detectors (MWD), like the DAD, use a grating to disperse the light onto a photodiode array after the light has passed through the flow cell. Therefore, absorption occurs simultaneously across up to eight compound-specific wavelengths. Target analytes are molecules carrying a chromophore with adsorption at different wavelengths.

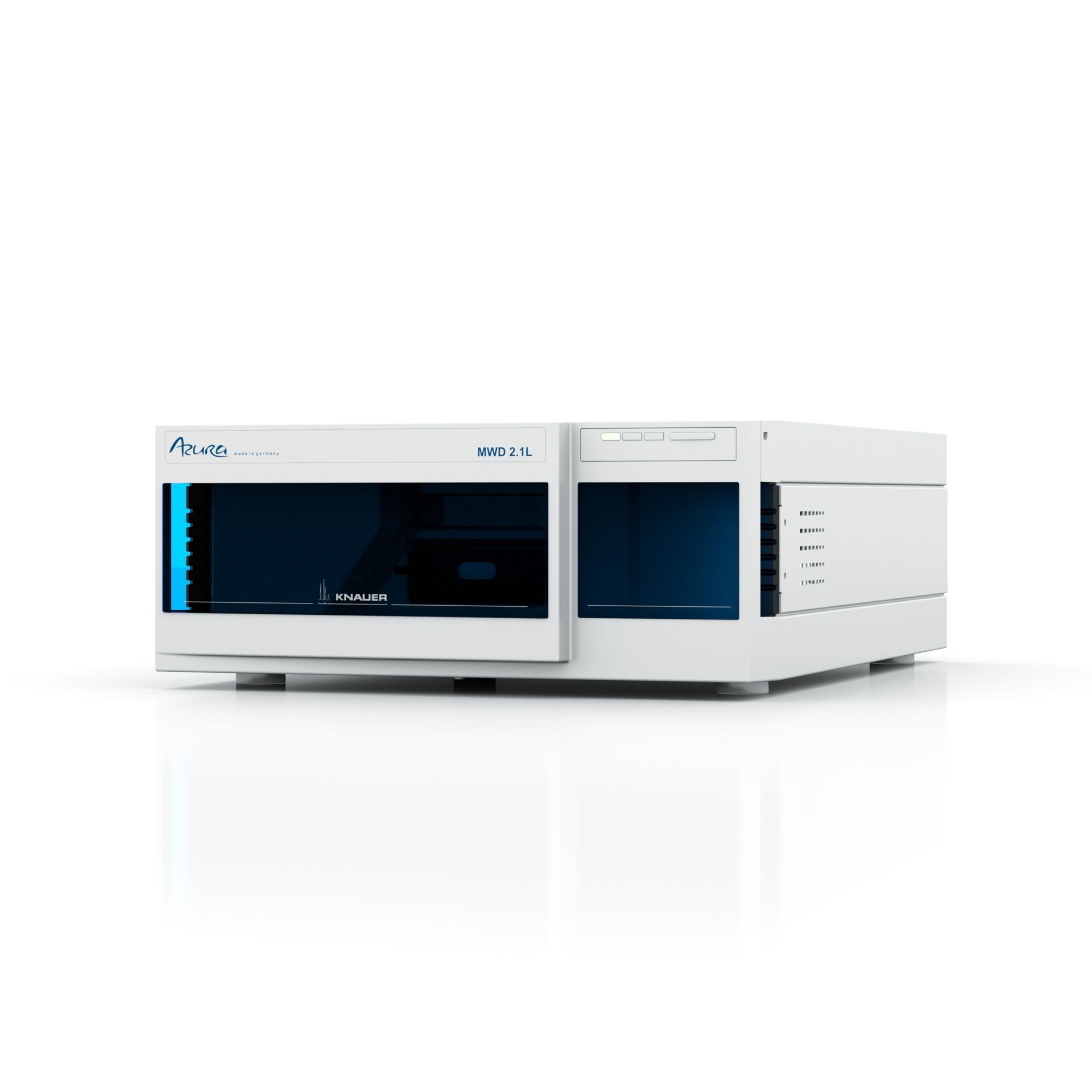

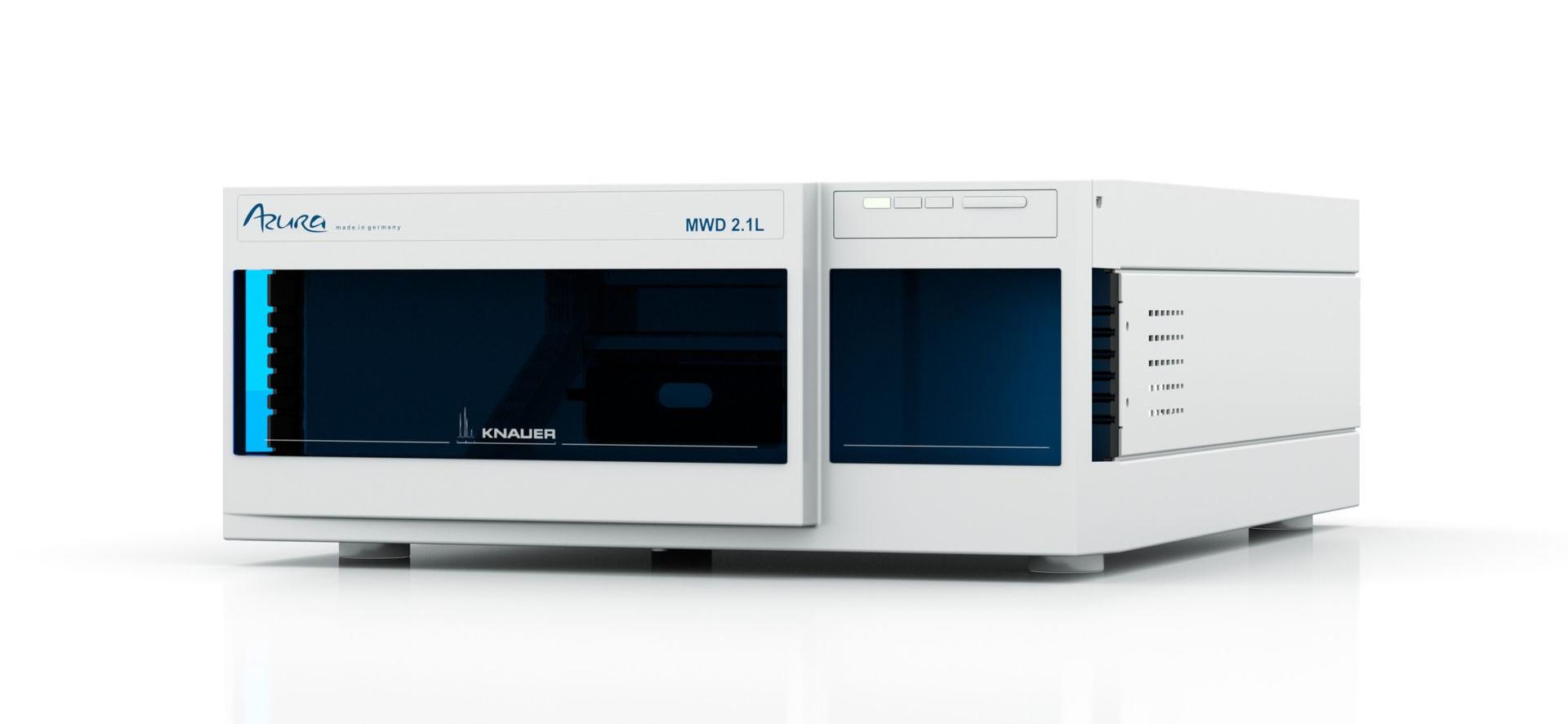

The AZURA® MWD 2.1L is an 8 channel, very sensitive multiwavelength detector combining high performance with easy handling. Over a wavelength range from 190 to 700 nm, simultaneous detection of up to eight compound-specific wavelengths for optimum selectivity is provided at data rates up to 100 Hz. A wide range of easily exchangeable cartridge flow cells make this device the right choice for fast, standard analytical, semi-preparative and preparative separations with bio-inert or stainless steel wetted parts.
High sensitive UV-Detection for robust detection of trace level components

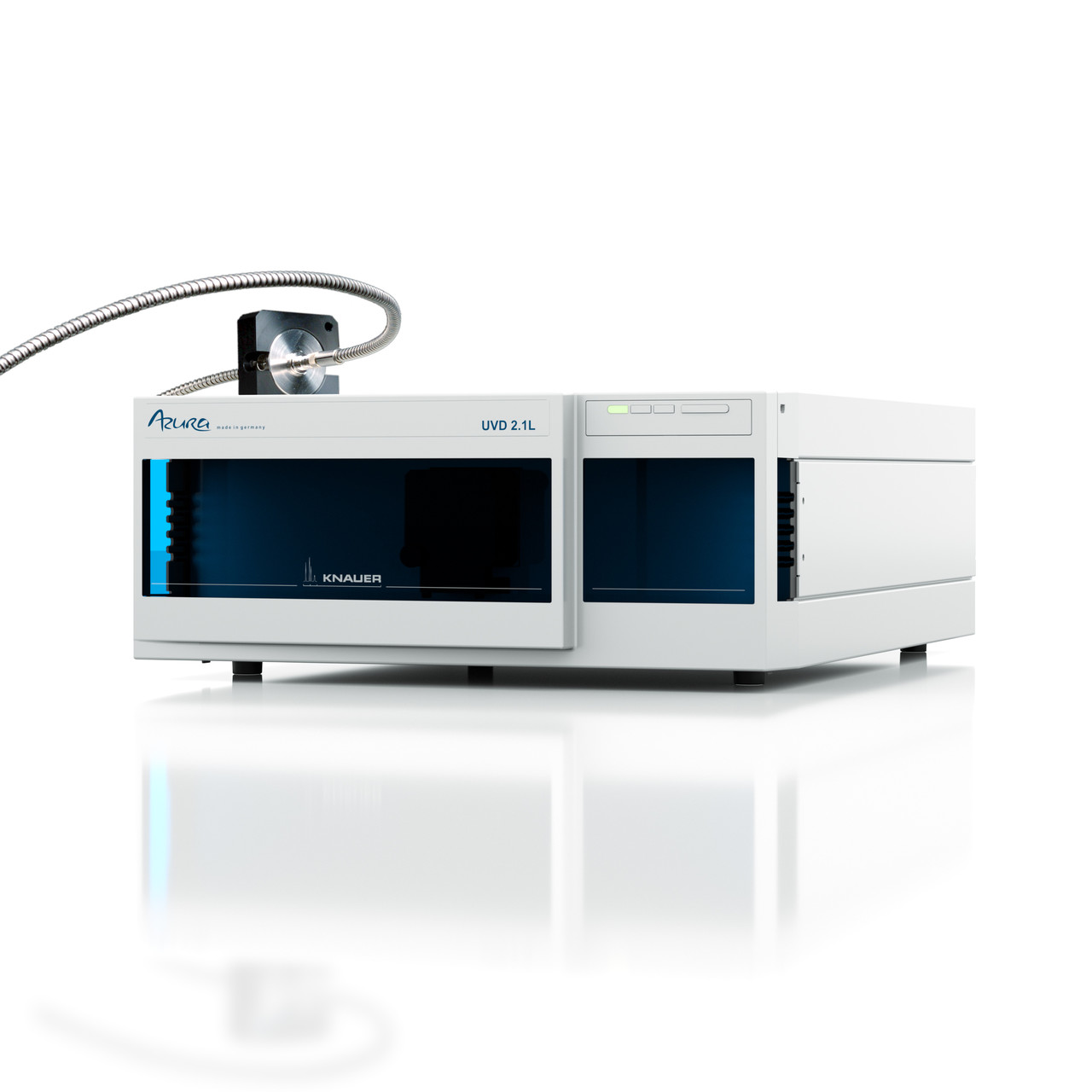

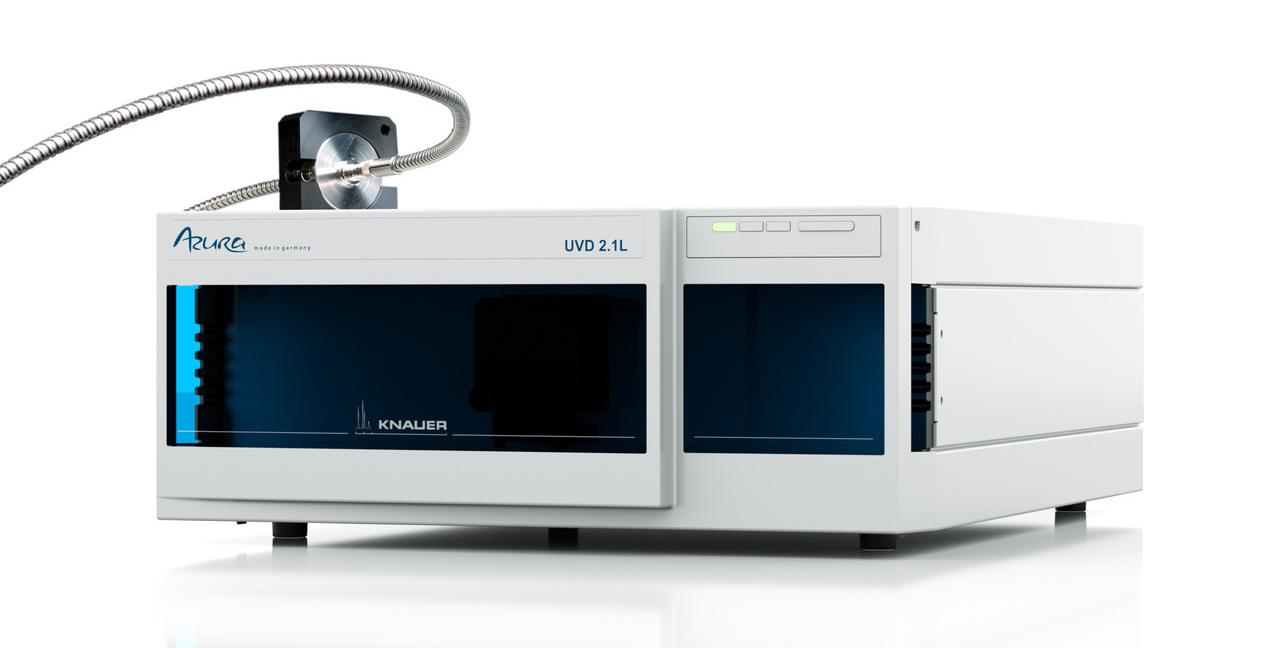

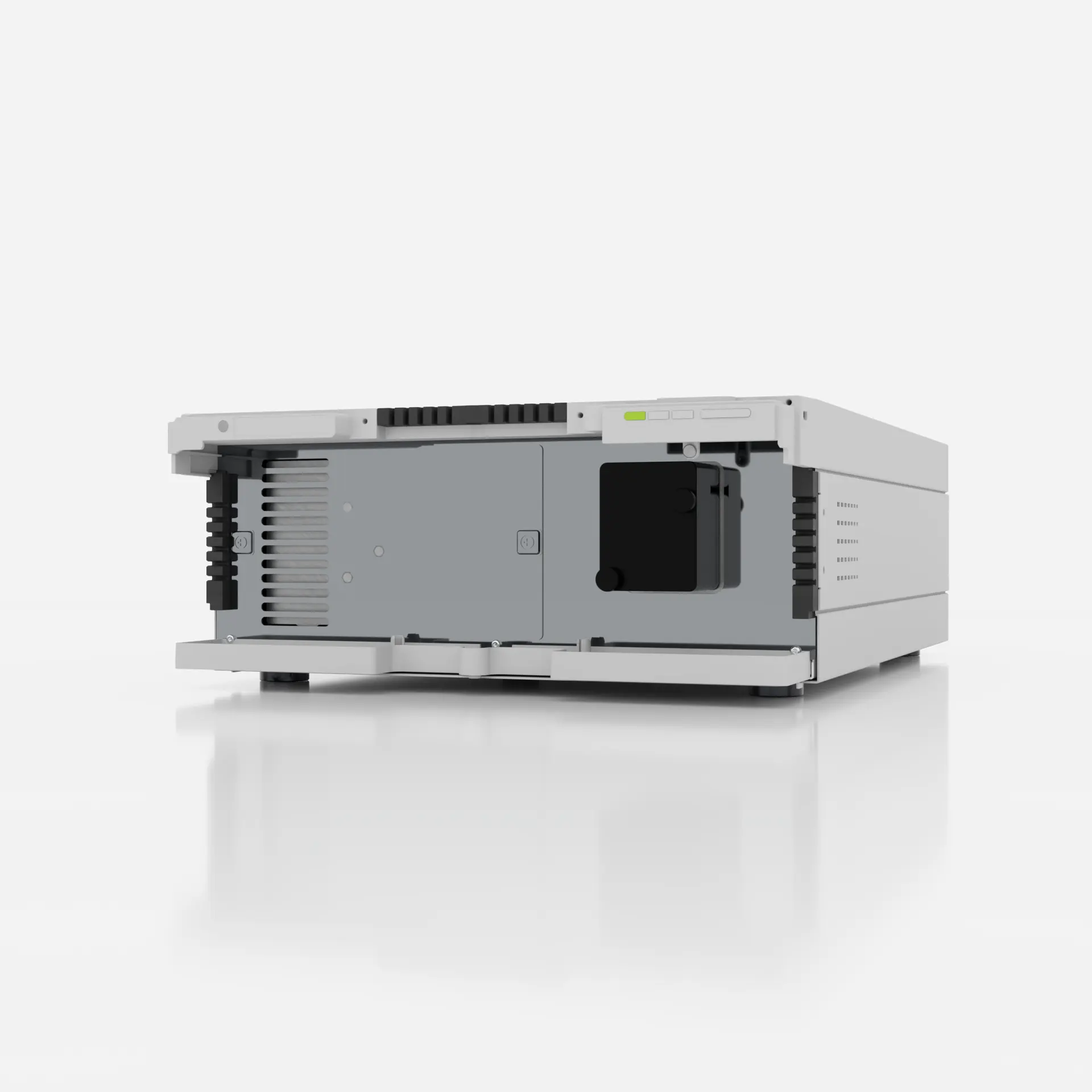

Devices called UVD are variable wavelength detectors using a rotating grating to disperse polychromatic light into the spectrum. The light of a single wavelength is then selected and passed through the exit slit.
All lot of different KNAUER UV-Detectors with a wide range of easily exchangeable flow cells make this device the right choice for fast, standard analytical, semi-preparative and preparative separations with bio-inert or stainless steel wetted parts.

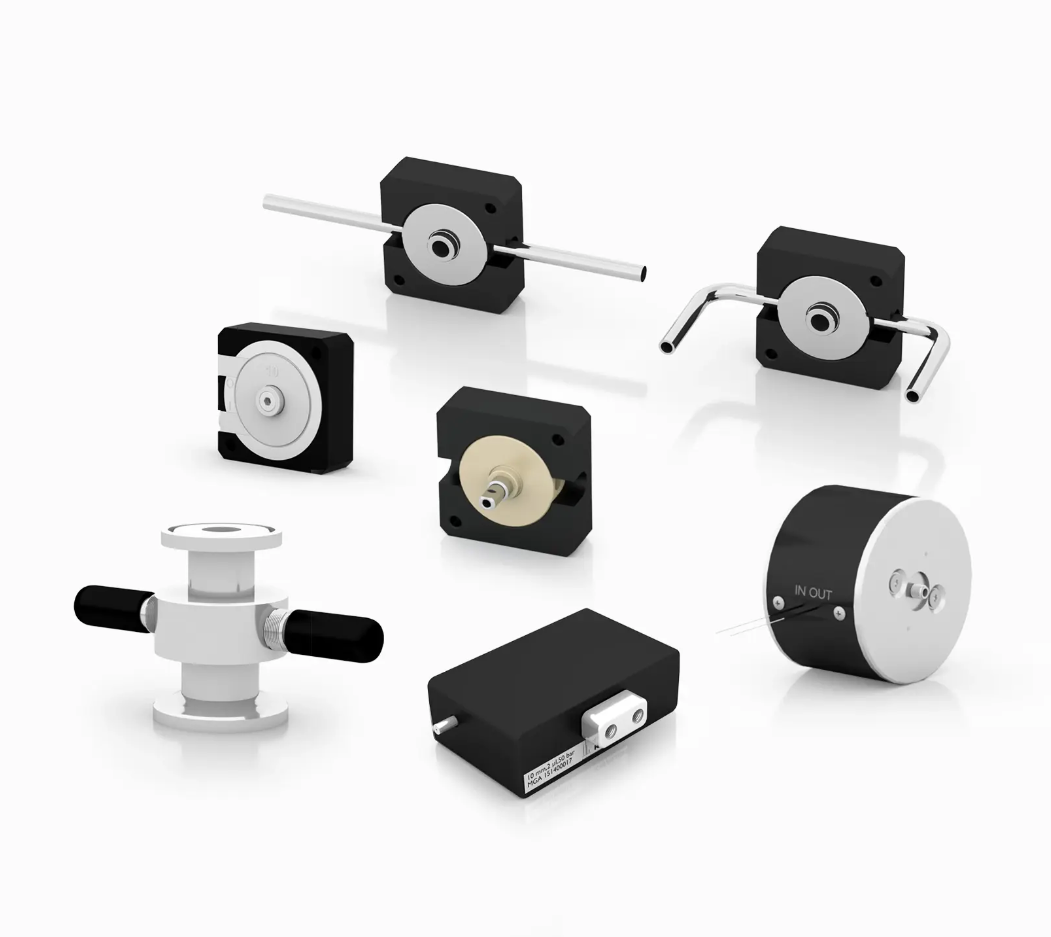

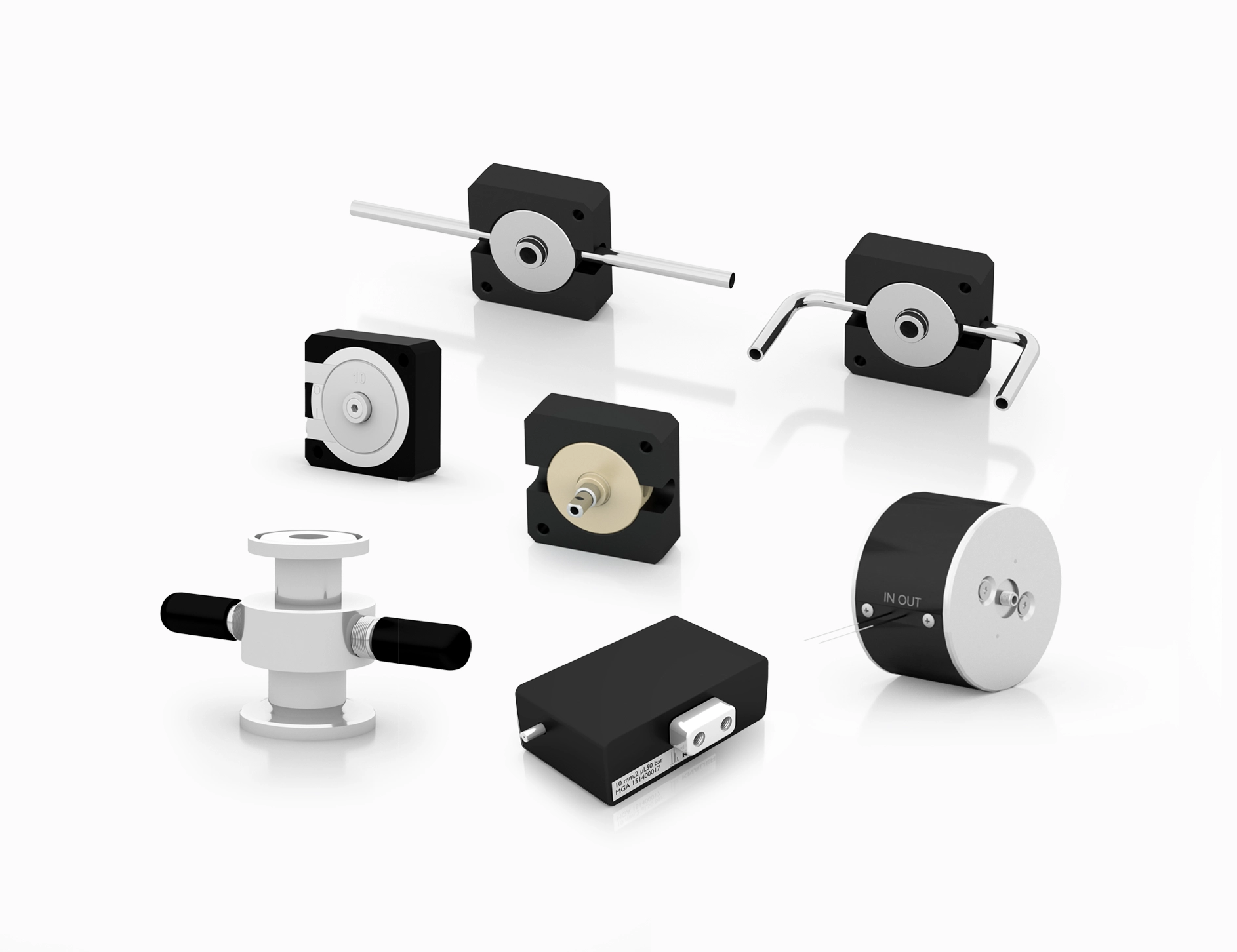

UV/VIS Flow Cells with no limitations
A wide range of easily exchangeable flow cells are the right choice for fast, standard analytical, semi-preparative and preparative separations with bio-compatible or stainless steel wetted parts.
KNAUER flow cells in cartridge design are very easy exchangeable by just clicking them out without any tools.
